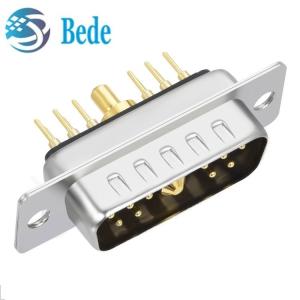

11W1 Combination D Sub Connectors male / female mixed High Current and Coaxial signal

  • 1
  • 2
  • 3

Brand Name : BEDE

Model Number : 7W2 right angle pins

Certification : CE

Place of Origin : China

MOQ : 100

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 4000Pcs per day

Delivery Time : base on quantities

Packaging Details : PE bag and carton

Applicable Temperature : -55~+125℃

Gender : Male and female

Connector Type : D Sub

Working Voltage : 300V

Rated Current : 10A / 20A / 30A / 40A

Connector Style : D-SUB 7W2

Contact Material : Copper Alloy gold plated

Connector with signal contact material : brass gold plated

Signal contacts current rating : 3A

Insulator material : PBT+30%GF

Contact Now

11W1 Combination D Sub Connectors Male / Female Mixed High Current And Coaxial Signal

Description

This 11W1 mixed contact connectors (male and female) is designed around the standard D-Sub shell sizes with the possibility to have a blend of contacts such as signals with power, or high voltage contacts, which brings the advantage of an industry standard I/O interconnect product. All contact Pins of male and female are brass machined and with Ni-Au two plating layers, offer advantages with regard to current carrying capacity, contact variety, suitable plating, and an increased mechanical strength.

Applications:

, , ,

11W1 Combination D Sub Connectors male / female mixed High Current and Coaxial signal

Electrical Characteristics

  1. High Power Contact Ratings: 10, 20, 30 or 40 Amps optional, check the follwing drawing and table for details
  2. Connector Rating with Signal Contact: 3.0 Amps
  3. Operating Voltage: 300V
  4. High Power Contact Resistance: 2.7 Milliohms Max
  5. Withstand Voltage: 1000V AC for 1 Minute
  6. Insulation Resistance: 2000 Megohms Min.
  7. Temperature Rating: -55°C to +125°C
Part number A/mm B/mm Rated current
DBA11W1-1 1.7 2.0 10 Amp
DBA11W1-2 2.75 3.0 20 Amp
DBA11W1-3 3.3 3.6 30 Amp
DBA11W1-4 3.8 4.1 40 Amp

11W1 Combination D Sub Connectors male / female mixed High Current and Coaxial signal


China 11W1 Combination D Sub Connectors male / female mixed High Current and Coaxial signal factory

11W1 Combination D Sub Connectors male / female mixed High Current and Coaxial signal Images
